43 Mounting the system on the wheelchair

  Mounting the system on the wheelchair

screwing the beam to the wheelchair

checking if the joystick wouldnt be in the way of our mechanism

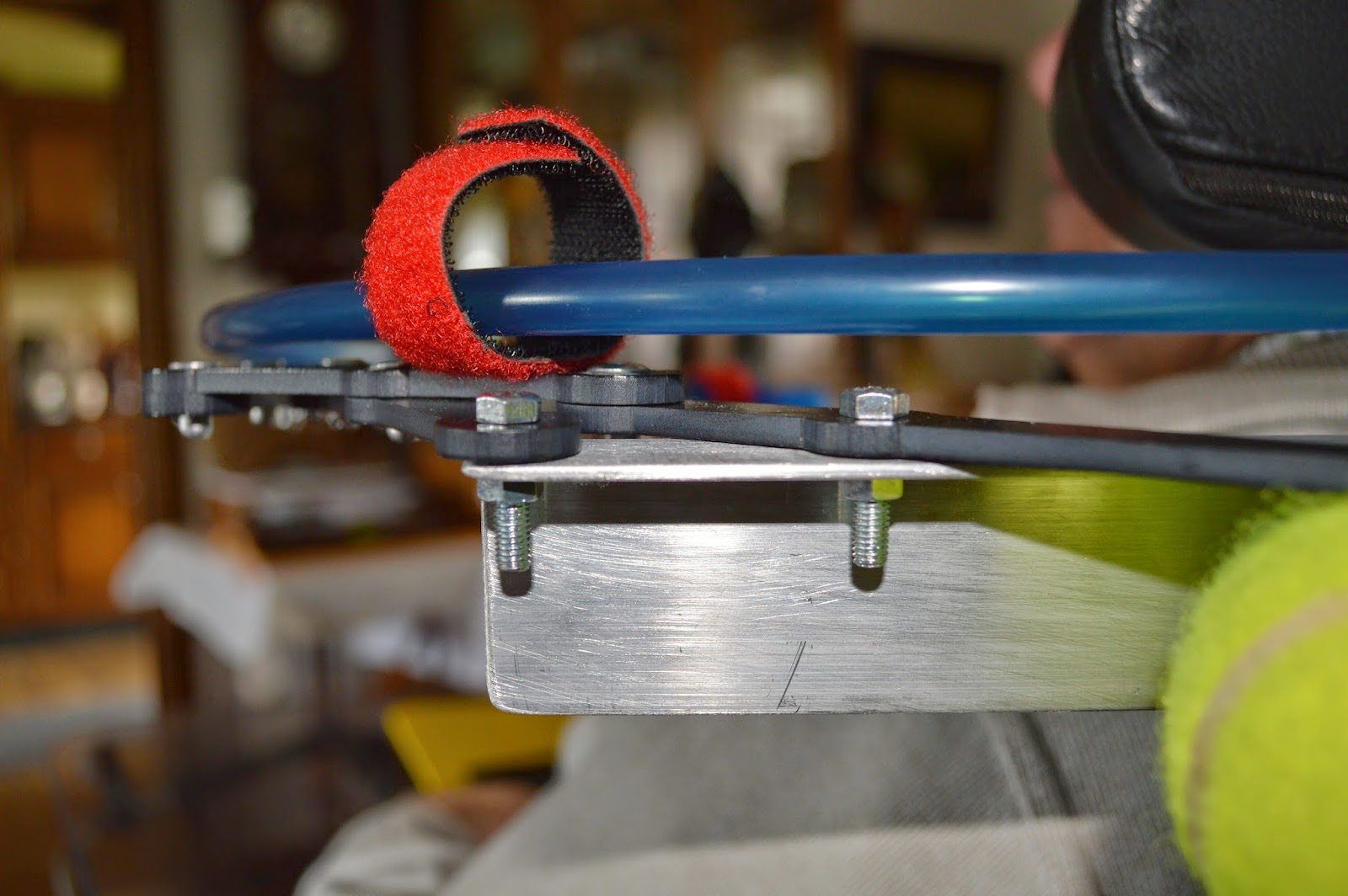

screwing the arm on the beam

adding the tube to the arm



after some effort to losen the screws it was easy to add our beam to the wheelchair also permanent mounting wont be a problem


bend was not perfect but worked





beam is slightly to long

Photographs to indicate to long beam

measuring tool shows the outer edge of the wheelchair

as you can see it s a matter for debate if the system would hit the door so we will have to change that
